Hamilton CO₂NTROL Arc Sensor

Hamilton CO₂NTROL Arc Sensor – NDIR Measurement of Dissolved CO₂ in Bioreactors

The Hamilton CO₂NTROL Arc Sensor measures dissolved CO₂ directly in the bioreactor using non-dispersive infrared (NDIR) optics, with the built-in Arc transmitter and ModBus communication delivering sensor data straight to the bioprocess controller — no external transmitter box, no analog signal conversion. Five insertion lengths (120, 160, 225, 325 and 425 mm) cover stirred-tank, BioBench, BioPilot and AppliFlex ST single-use vessels, with autoclave sterilisation to 130 °C, ± 5 mbar accuracy in the 5–100 mbar bioprocess range, and validated compatibility with Applikon Livit Flex, ez2-Control, my-Control and in-Control bioprocess controllers.

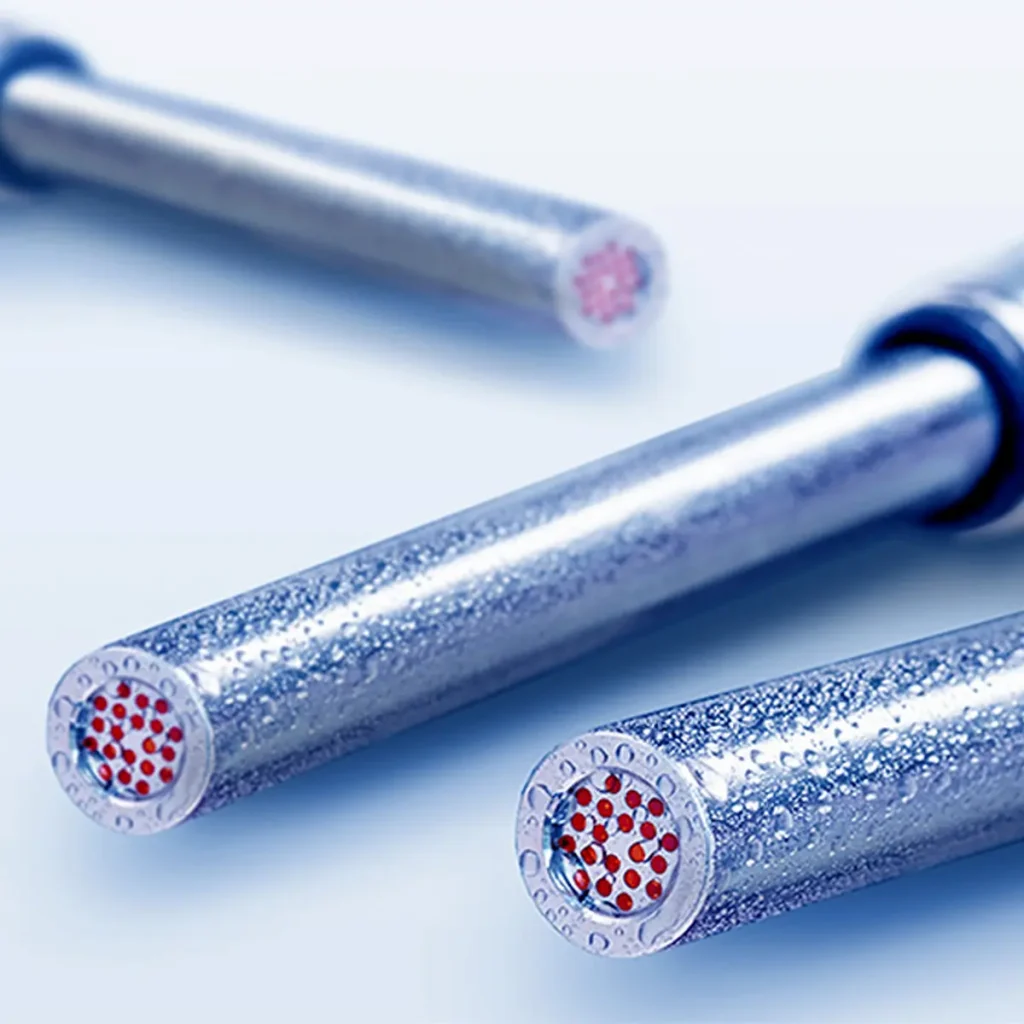

 A closer look at the Hamilton CO₂NTROL Arc Sensor.

The Hamilton CO₂NTROL Arc Sensor brings non-dispersive infrared CO₂ measurement directly into the bioreactor — and bundles the entire signal chain into the sensor head. The Arc smart-sensor architecture means the transmitter electronics, calibration data and sensor diagnostics all live on the probe itself; the cable simply carries ModBus to the controller. For cell culture and microbial fermentation alike, that translates to a single connection, a single point of calibration, and a continuous direct read of dissolved CO₂ — no equilibrator, no off-gas inference, no sampling delay.

Hamilton — the digital Arc sensor platform.

The Hamilton CO₂NTROL Arc Sensor is engineered by Hamilton, a global leader in process analytical sensors with a particularly strong reputation in pH, DO and CO₂ instrumentation for biopharmaceutical, food and life-science applications. The Arc platform — Hamilton’s flagship smart-sensor architecture — integrates the transmitter into the sensor itself, so each probe carries its own electronics, calibration data and diagnostic intelligence. The result is a sensor that talks ModBus directly to your controller, with no external transmitter box in between.

NDIR optics for direct CO₂ measurement.

The Hamilton CO₂NTROL Arc Sensor measures dissolved CO₂ using non-dispersive infrared (NDIR) spectroscopy. CO₂ in the bioreactor medium equilibrates across a gas-permeable membrane into the sensor’s internal measurement cavity, where it absorbs a specific infrared wavelength; the absorption is measured against an internal solid-state reference, and the result is converted directly into dissolved CO₂ concentration in mg/L, %-vol or mbar units. The measurement range spans 5–1000 mbar (or 7.5–1500 mg/L at 101.3 kPa, 25 °C), with ± 5 mbar accuracy in the 5–100 mbar window and 5 % accuracy above 100 mbar — the bioprocess-relevant ranges.

Because NDIR is an optical method, the measurement is inherently drift-low and doesn’t depend on electrolyte chemistry. There’s no reference electrolyte to refresh, no membrane chemistry to replace as a planned maintenance step — the sensor’s service profile looks different from anything electrochemical.

One sensor across the Applikon family

The CO₂NTROL Arc is available in five insertion lengths covering every Applikon vessel format from benchtop through pilot scale — and shares the same 12 mm diameter, PG 13.5 thread, VP8 connector and standardised port across the entire range.

At lab scale.

  1. 1 Applikon Autoclavable Glass Bioreactor (2 – 20 L) for process development.
  2. 2 AppliFlex ST (2 L – 15 L) single-use stirred-tank.

At bench and pilot scale.

  1. 1 BioBench (20 – 30 L) for cGMP-grade development.
  2. 2 BioPilot (30 – 270 L) for clinical and small-commercial production.

The CO2 sensor is with the Arc protocol compatible with every Applikon controller in our range — Livit Flex, ez2-Control, my-Control and in-Control. Process knowledge built at the bench transfers cleanly upward through the Applikon family without changing the sensor technology.

A direct, sample-free read on dissolved CO₂

What distinguishes the Hamilton CO₂NTROL Arc Sensor from indirect CO₂ inference methods is that you actually measure the dissolved gas — not estimate it from off-gas concentration or pH-bicarbonate equilibrium calculations. Dissolved CO₂ matters for product quality (CO₂ inhibits growth at elevated levels in mammalian cell culture; bicarbonate balance affects pH stability; sparging strategy depends on actual dissolved-gas concentration), and the only way to control it tightly is to measure it directly.

The NDIR principle is also inherently fast: equilibration across the gas-permeable membrane is the rate-limiting step, and that response is well under a minute. For fed-batch processes where CO₂ accumulation can shift mid-run, this means the controller sees the change in time to react — not minutes later when the off-gas eventually catches up.

Hamilton CO₂NTROL Arc Sensor

Smart Arc diagnostics — sensor health at a glance.

The Arc platform puts the transmitter electronics inside the sensor head. That has two operational consequences worth highlighting.
First, no external transmitter: the cable runs from the sensor directly to the controller’s ModBus input. No transmitter box on the bench, no signal-conversion module, no extra rack space, no analog-to-digital conversion error introduced between sensor and controller.

Second, on-board diagnostics: the sensor monitors its own health — light-source intensity, calibration validity, temperature compensation status, and other internal parameters — and reports the status continuously to the controller. If a calibration is drifting or the light source is approaching end-of-life, you know about it before the data does.

For sites operating multiple bioreactors, this matters at fleet level: the controller sees sensor health across every vessel, and predictive maintenance becomes a data-driven decision rather than a scheduled assumption.

Key features

What you get with the CO₂NTROL Arc

Direct NDIR measurement of dissolved CO₂, on-board Arc Intelligence, and native auto-detection on every Applikon controller in the Resea range — built for cell culture, microbial fermentation and pilot-scale workflows from AppliFlex ST 500 mL through BioPilot.

Dissolved CO₂ is the variable that pH-only control loops can’t infer directly. The CO₂NTROL Arc reads it at the source — non-dispersive infrared (NDIR) absorption of the dissolved CO₂ in the medium, not derived from off-gas measurement and not back-calculated from pH drift. The signal lands in the 5–1000 mbar bioprocess window with ± 5 mbar accuracy, accurate enough for closed-loop gas-flow control during high-OUR microbial phases and tight enough for the 50–150 mbar mammalian cell culture range where glycosylation and titer are at stake.

Architecturally, the CO₂NTROL Arc is part of the same Hamilton Arc platform as the EasyFerm Plus Arc, VisiFerm DO₂, Incyte Arc and Dencytee Arc — integrated transmitter inside the sensor head, on-board calibration storage that travels with the probe through every vessel transfer, and ArcAir for fleet-wide diagnostics across the full Hamilton Arc sensor set. Native Modbus Arc integration on every Applikon controller in the Resea range means the sensor is auto-detected by Arc ID on connection — no separate transmitter box, no analog conversion error, no parallel sensor-management software stack.

Core capabilities.

  • Direct NDIR measurement of dissolved CO₂ — 5–1000 mbar range, ± 5 mbar accuracy in the bioprocess window, no off-gas inference required.
  • Arc smart-sensor architecture — built-in transmitter, on-board calibration storage, real-time sensor diagnostics; no external transmitter box, no analog conversion error.
  • Modbus Arc digital communication — direct integration with Applikon Livit Flex, ez2-Control, my-Control and in-Control; auto-detection on connection.
  • Five insertion lengths, autoclavable to 130 °C — covers AppliFlex ST 500 mL through BioPilot pilot scale; PG 13.5 thread fits standard third-party vessels too.

Spec your CO₂NTROL Arc with Resea Biotec.

The Hamilton CO₂NTROL Arc is the direct dissolved CO₂ sensor for cell culture and microbial fermentation workflows where pH-only control loops can’t read what the cells actually experience. NDIR absorption measurement in the 5–1000 mbar range with ± 5 mbar accuracy in the bioprocess window, Arc Intelligence with calibration history stored on-board, and native auto-detection on every Applikon controller in the Resea range — Livit Flex, ez2-Control, my-Control and in-Control. Available in five insertion lengths (120 / 160 / 225 / 325 / 425 mm) covering AppliFlex ST 500 mL through to BioPilot pilot scale.

For dissolved CO₂ data to add value to your process, it needs to integrate cleanly into the controller you already run — and the Arc sensor’s auto-detection makes that straightforward across the full Applikon controller family. Resea Biotec is the Swiss distribution and service partner for Hamilton bioprocess sensors — based in Recherswil, supporting customers across Switzerland with technical support and on-site service.

Talk to our team and we’ll spec the right CO₂NTROL Arc insertion length for your vessel, confirm Arc compatibility with your controller fleet, advise on the calibration gas workflow (zero-point and span-point gases for your operating range), coordinate ArcAir deployment where required, and stay on hand for application advice and maintenance support throughout the sensor’s life. Whether you’re adding dissolved CO₂ measurement to a mammalian cell culture line where glycosylation control matters, building out high-OUR microbial fermentation with closed-loop gas-flow PID, or extending an existing Hamilton Arc sensor fleet with the dissolved CO₂ complement — we’ll help you spec the right combination end to end.
